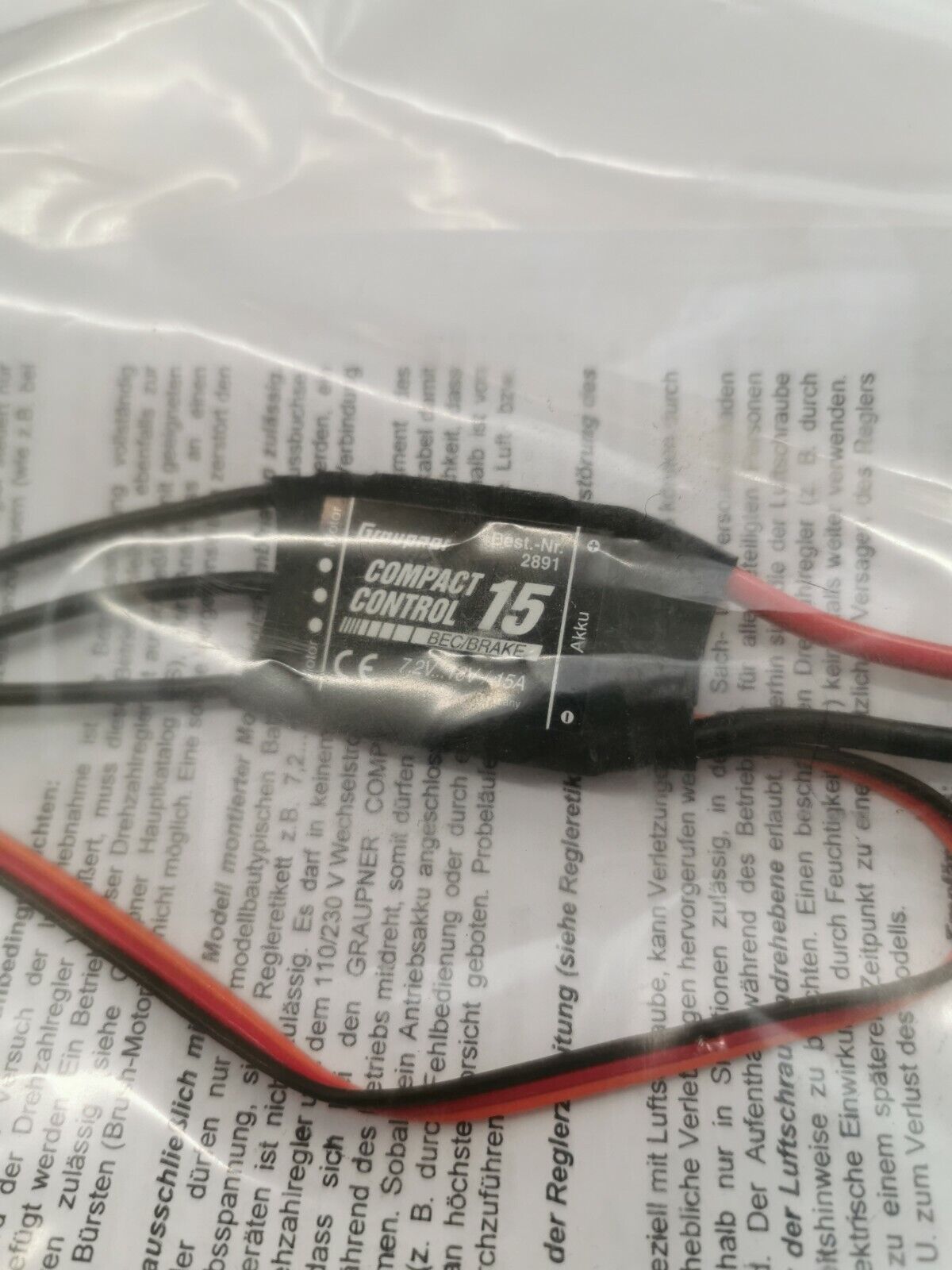

Graupner Compact Control 15 BEC With Brake High Quality 15A ESC 7.2-12V G2891

New brushless speed controllers, expanding the existing range. An excellent match for GRAUPNER COMPACT motors. Performance features of COMPACT-CONTROL Brushless speed controllers:

Plug & Play: prepared for use with GRAUPNER/JR radio control systems and GRAUPNER COMPACT high-performance motors.

Pre-programmed EMF brake (BRAKE) for electric gliders with folding propeller.

Ultra-simple programming for other applications such as electric power models and model boats.

Outstanding performance figures. The stated nominal current, in each case printed clearly on the label, can be exceeded for brief periods without the unit shutting down unexpectedly.

Ultra-swift start-up and regulatory characteristics; ideal for aerobatic and demonstration models.

Specification

Operating voltage range 7.2 ... 12 V

Cell count, NiCd, NiMH 6 - 10

Continuous current* 15 A

Max. motor current* 20 A

Excess current guard approx. 25 A

Overheating guard approx. 100° C

EMF brake Mode 1

Soft-start According to mode

Low-voltage cut-off According to mode

Power-on pulse suppression

Pulse frequency 8 kHz

BEC receiver power supply 5 V max. 1.5 W

Dimensions approx. 40 x 25 x 5 mm

Weight incl. cables approx. 20 g

Mode 1 Electric gliders

Mode 2 Power models /Model boats

* In conjunction with NC and NiMH battery packs of max. 3.5 Ah capacity.
