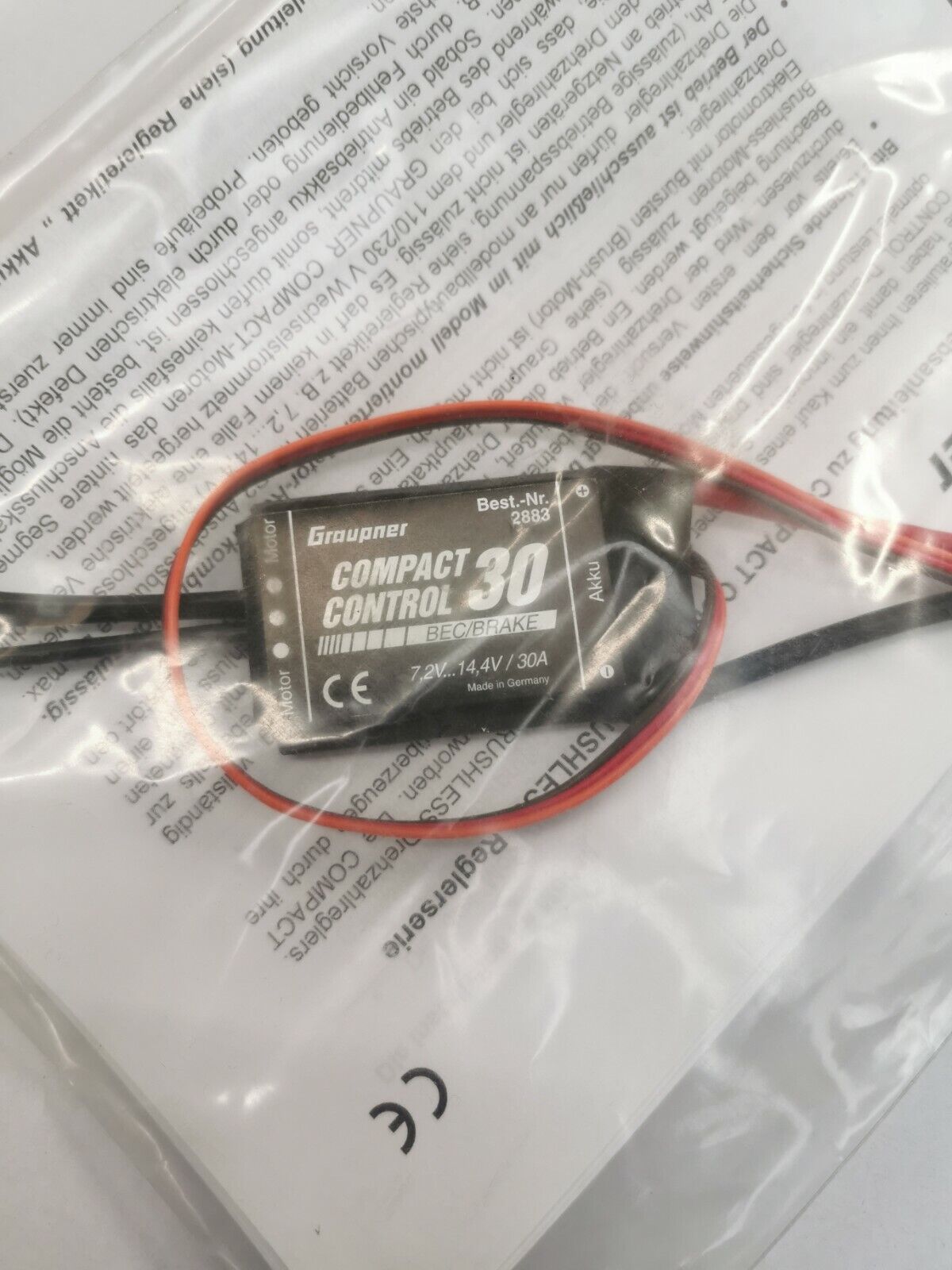

Graupner Compact Control 30 Speed Controller High Quality 30A ESC 7.2-14.4V

A new series of brushless speed controllers. An excellent choice for use with the new GRAUPNER COMPACT motors. However, these controllers are also suitable for use with conventional brushless electric motors such as ULTRA Sensorless, CARBON 70 and EVO one 50 high-performance types. Performance features of COMPACT-CONTROL brushless speed controllers:

Plug & Play prepared for GRAUPNER/JR radio control systems and GRAUPNER COMPACT high-performance motors.

High-capacity BEC system* to power the receiving system. With Auto Cut-Off safety power-off circuit.

Ready-programmed EMF brake (BRAKE) for electric gliders with folding propellers.

Ultra-simple programming for other forms of model such as electric power aircraft and model boats.

Outstanding performance figures. The stated nominal current, printed very clearly on the controller´s label, may safely be exceeded briefly without the system shutting down.

Ultra-responsive start-up and control characteristics; ideal for aerobatic and show-fly models.

Specification

Operating voltage range 7.2 ... 14.4 V

No. of cells 6 - 12

Continuous current* 30 A

Maximum motor current* 40 A

Excess current threshold approx. 47 A

Overheating threshold approx. 100° C

EMF brake In mode 1

Soft-start According to mode

Low-voltage cut-off According to mode

Power-on pulse suppression

Pulse frequency 8 kHz

BEC receiver power supply 2.5 W

OPTO -

Dimensions approx. 60 x 37 x 10 mm

Weight including cables approx. 50 g

Mode 1 Electric gliders

Mode 2 Power models /model boats

*In conjunction with NC and NiMH battery packs of max. 3.5 Ah capacity.
